Hydraulic Top Link Cat 1-1 with Locking Block A22743
Sale price
$39.99
Regular price $239.00
Skip to product information
Vehicle Service Type: Tractor
Material: Stainless Steel
Load Capacity: 7200 pounds
Maximum Lifting Height: 26.38 inches
Brand: SPARE PARTS HOLLAND

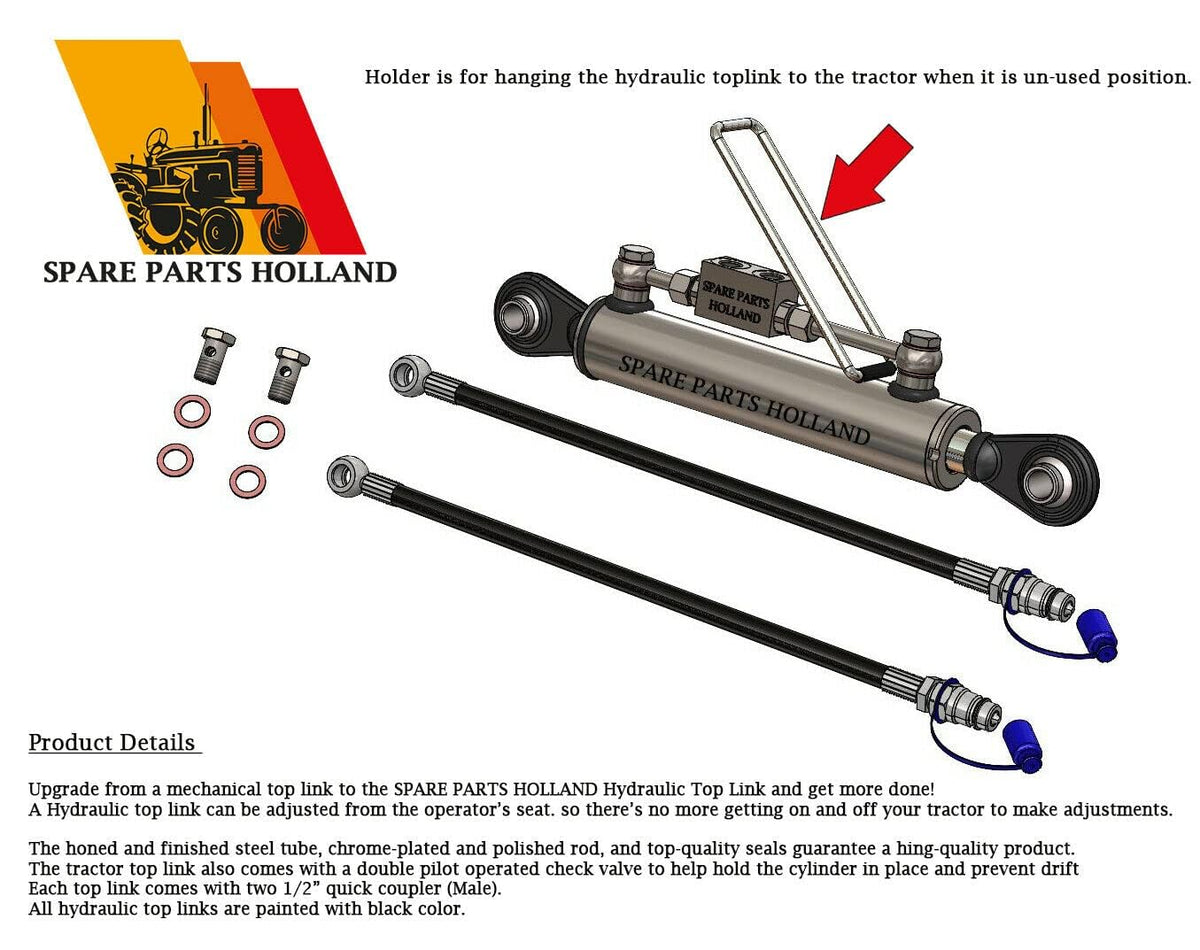

- Spare Parts Holland - Hydraulic Top Link Cat 1-1 with Locking Block - Min. 18-1/8" Max. 26-3/8"
- Intelligent and Strong: Premium hydraulic top link with integrated locking block technology, maintains adjusted position consistently. Features sturdy steel construction with black protective finish. Hydraulic operating pressure of 2610 PSI with 7937 Lbs push force and 5071 Lbs thrust force.

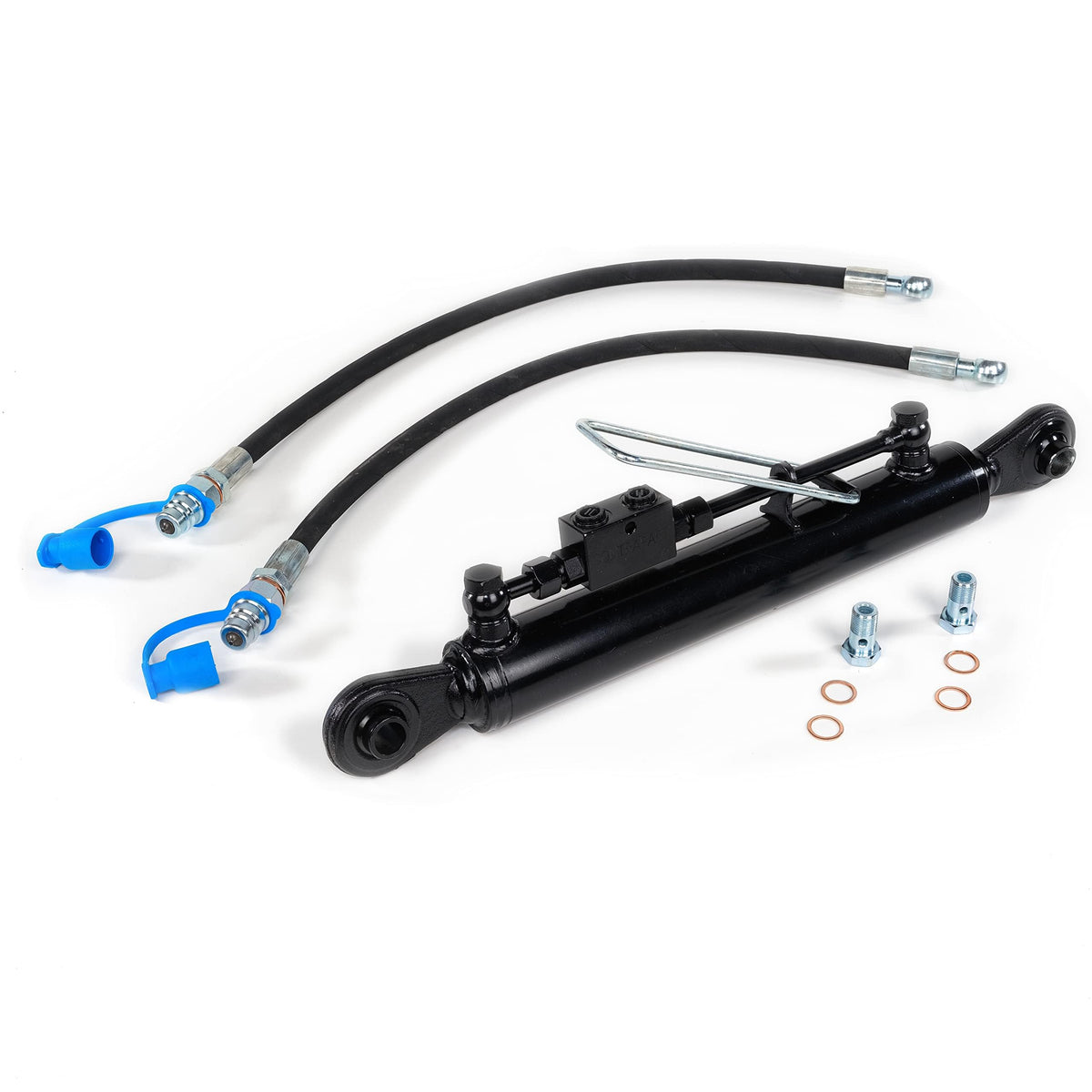

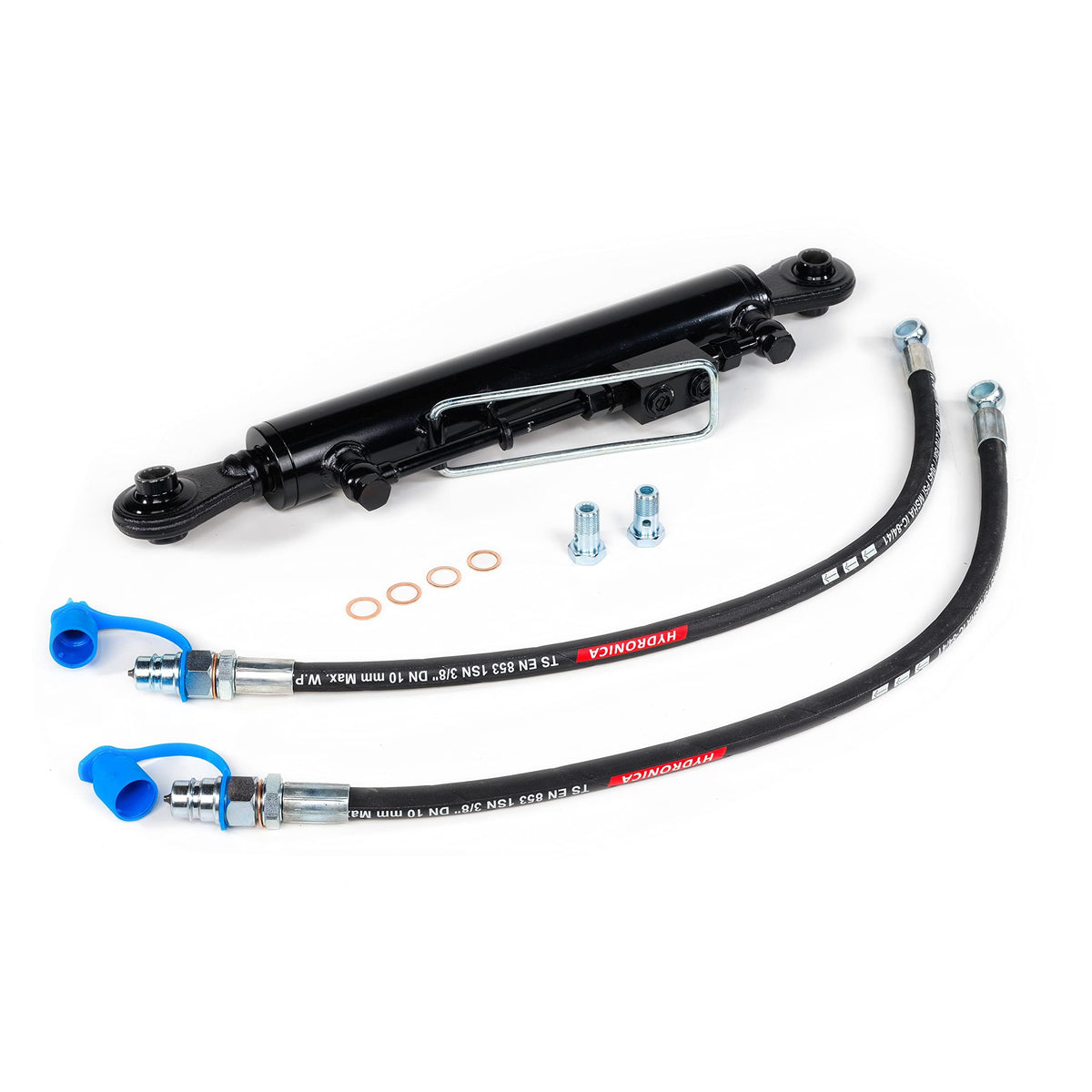

- Complete Installation Kit: Includes 2x hydraulic hoses with male quick couplers (Blue Flex SAE 100 3/8), protective dust covers, and banjo bolts with sealing rings. Comprehensive fitting set ensures easy setup and maintenance.

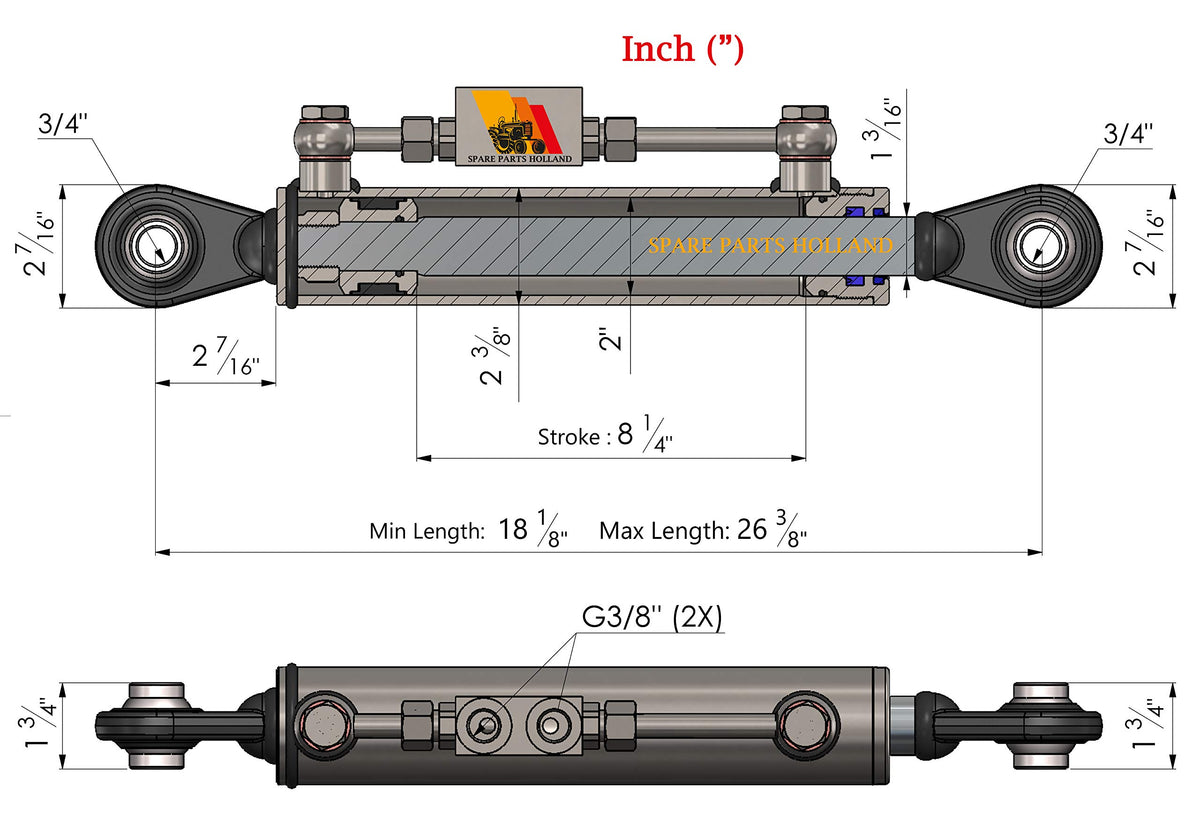

- Adjustable Design: Cat 1 top link system with rotatable piston rod for precise implement positioning. Working length ranges from 18-1/8 inches minimum to 26-3/8 inches maximum. Features extended stroke for optimal adjustment range.
- Advanced Locking Mechanism: Integrated check valve system securely locks cylinder position, requires active hydraulic pressure for adjustments. Ensures stable implementation positioning during operation and transport.
Hydraulic Top Link Cat 1-1 with Locking Block A22743
Sale price
$39.99
Regular price $239.00
Shipping calculated at checkout.
